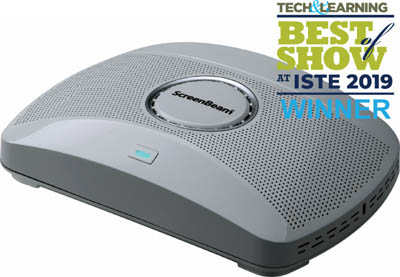

ScreenBeam 1000 EDU wireless display receiver
Model #: SBWD1000EDU
4K Wireless Display for Schools | App-free | Wireless Touch | Extended Screen | Enterprise Management | And, Classroom Orchestration | Yes, it's what you've been looking for.

Wireless screen mirroring is an essential tool for moving teachers from the front of the classroom and into the classroom, making it easier to connect and collaborate with their students. The result is the right kind of teacher and student interactions that foster creative productivity and encourage meaningful collaboration. The need is clear and it is already being met by education institutions all over the world. Keep scrolling to hear from ScreenBeam experts that are making a difference every day in their classrooms and getting the most out of their devices.

Actiontec ScreenBeam  1000 EDU
Tech Specs

Minimum System Requirements

Chromebook Teacher Device: OS: Windows 10 (64-bit), macOS 10.10, or Chrome OS 81.0.4043.103
CPU: Fourth gen Intel Core i5 or ARM-based equivalent for Chromebook
Chromebook Student Device: OS: Chrome OS 81.0.4043.103
CPU: Intel Celeron N3060 or any ARM
Windows Teacher Device: OS: Windows 10 (64-bit) build 1709 (or later)
CPU: Fourth gen Intel Core i3 or AMD equivalent
Windows Student Device:

OS: Windows (64-bit) build 1709 (or later)
CPU: Intel Celeron N3010 or AMD equivalent



Video: H.264 compression
Audio: LCPM 2.0
Resolution (1): Up to 4K60(HDMI), 4K30 (Windows 10 Miracast)
Ethernet: 10/100/1000-BASE-T RJ-45 LAN (non-concurrent with Network Bridge)
Wireless: Miracast and Local Wi-Fi Mode: 802.11ac dual-band 33 MIMO
Network Bridge: 802.11ac dual-band 22 MIMO (non-concurrent with Ethernet)
Authentication: WPA-PSK (TKIP)
Protocol: WPA2-PSK (AES)
Interface: 1 x HDMI Output
1 x VGA Output
1 x Analog 3.5mm audio Output
2 x USB 2.0 Host Type-A
1 x USB 3.0 Host Type-A
1 x DC Power Jack
Content Protection (2): HDCP 2.x
Power: Input: 12VDC, 3A
Consumption: 8.4W (typical), 36W (peak)
Dimensions: 8.66 x 5.66 x 1.99 inch (220 x 144 x 50.5 mm)
Operating temperature: 0 to 40 (32 to 104 )
Storage temperature: -20 to 85 (-4 to 185 )
Operating humidity: 20 to 85%, non-condensing
Storage humidity: 10 to 90%, non-condensing

(1) Actual display resolution and quality depend on the wireless/network environment
(2) Content protection is not available for macOS/iOS

Compatible OS/Device

Miracast P2P wireless display requires certified device with either: Windows 10 build 1607 (and later) or Windows 8.1
Android 4.2 (and later)
Wireless display over network requires device with either: Chrome OS 81.0.4043.103 (and later)
Windows 10 build 1709 (and later)
Windows 7 (and later)
macOS 10 (and later)
iOS 11 (and later)
ScreenBeam Classroom Commander for Chromebooks requires a server with: Windows 10 Professional or Enterprise build 1809 (and later)
Core i5 4th generation or later
256 GB storage
Language support: English



Regulatory and compliance: North America: FCC, IC and UL
European Nation: CE, RED and RoHS
Warranty: One year
